Socket nuts
Socket nuts
versatilely to use
Article No.: 200751
Your current choice:

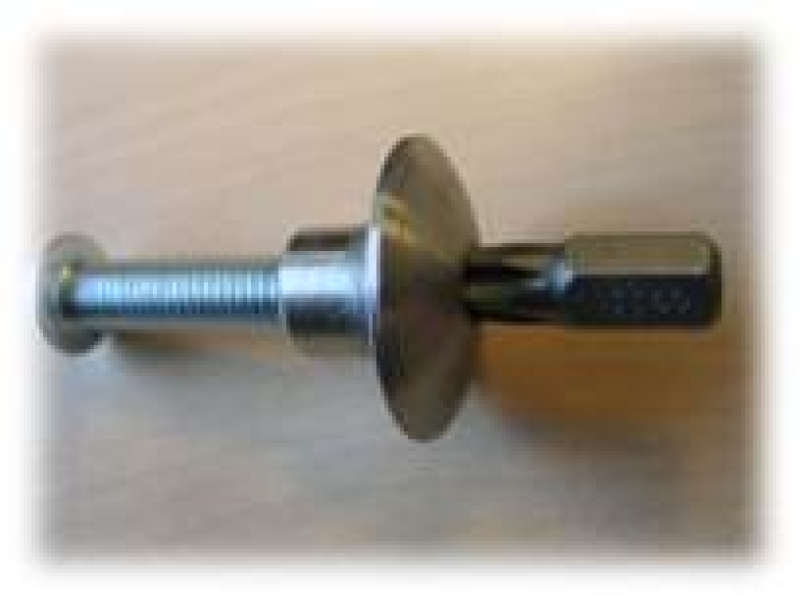

Inner thread M10, length 15 mm, Ø bush 16 mm, hdg
Description
Dimensions
- Sleeve nut, socket nut, mounting socket
- Available made from stainless steel or hot dip galvanized steel
- Available threads M8 - M16
- With Torx 50 drive (bit sold separately)
- To connect beams, to fix accessories, climbing nets or to fix swing joints
- Head diameter 35 mm
- Length and size of the bush depends on thread size
- At higher quantities, we can produce tailor made sizes
| Größe | L | H | K |
| M8x30 | 30 | 14 | 30 |
| M10x15 | 15 | 14 | 30 |
| M10x40 | 40 | 14 | 30 |
| M12x40 | 40 | 16 | 30 |
| M12x50 | 50 | 16 | 30 |
| M14x40 | 40 | 20 | 35 |
| M16x50 | 50 | 20 | 35 |
